EV Interior Materials

SAN FANG CHEMICAL INDUSTRY CO., LTD

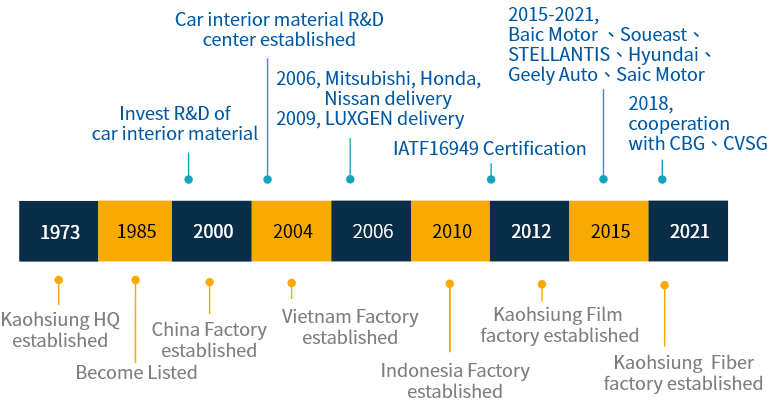

Milestone

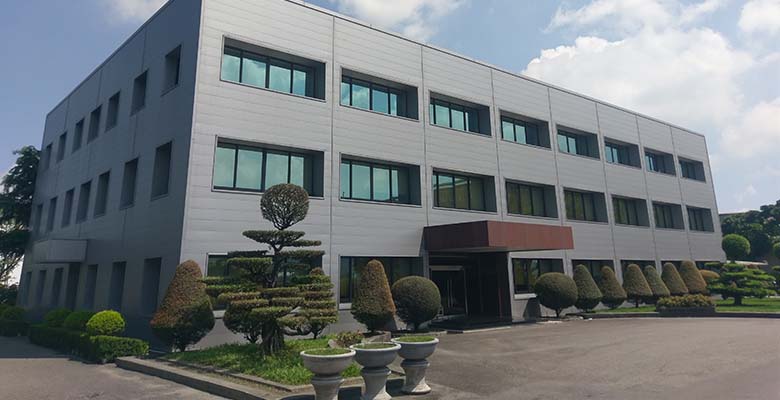

Kaohsiung HQ

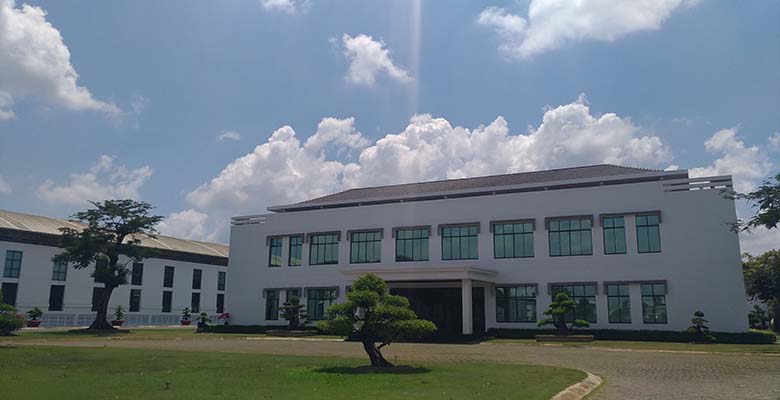

Vietnam Factoy

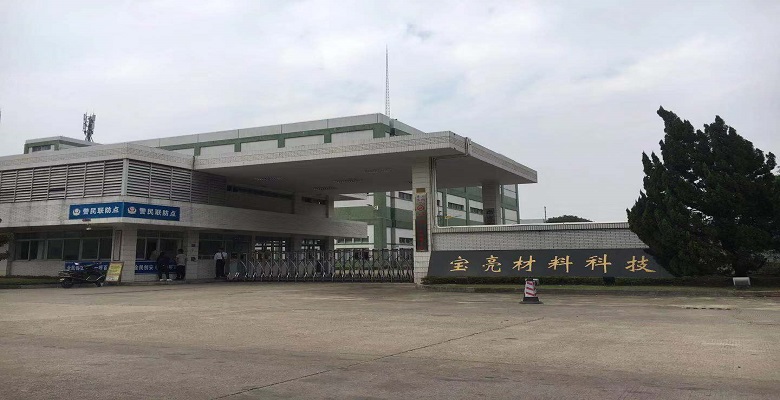

China Factory

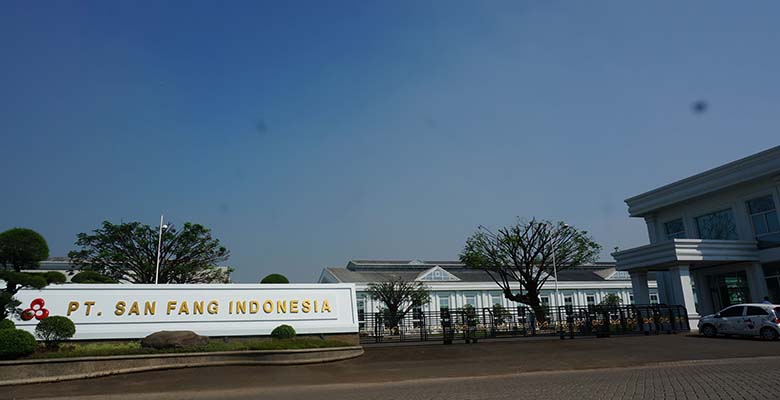

Indonesia Factory



Core Technology



Core value for EV interior


IMG-S / IMG-L / OMD / TOM

The era of labor shortage and automated production is about to emerge.
Sanfang introduced materials that meet the request of various
automotive process. In accordance with the future demand trend of new
energy vehicles,we designed and developed different vacuum process
materials,environmentally friendly , non-toxic, VOC-free and thermoplastic
leather...,create new generation of mobile tools with customers.






Business Partner

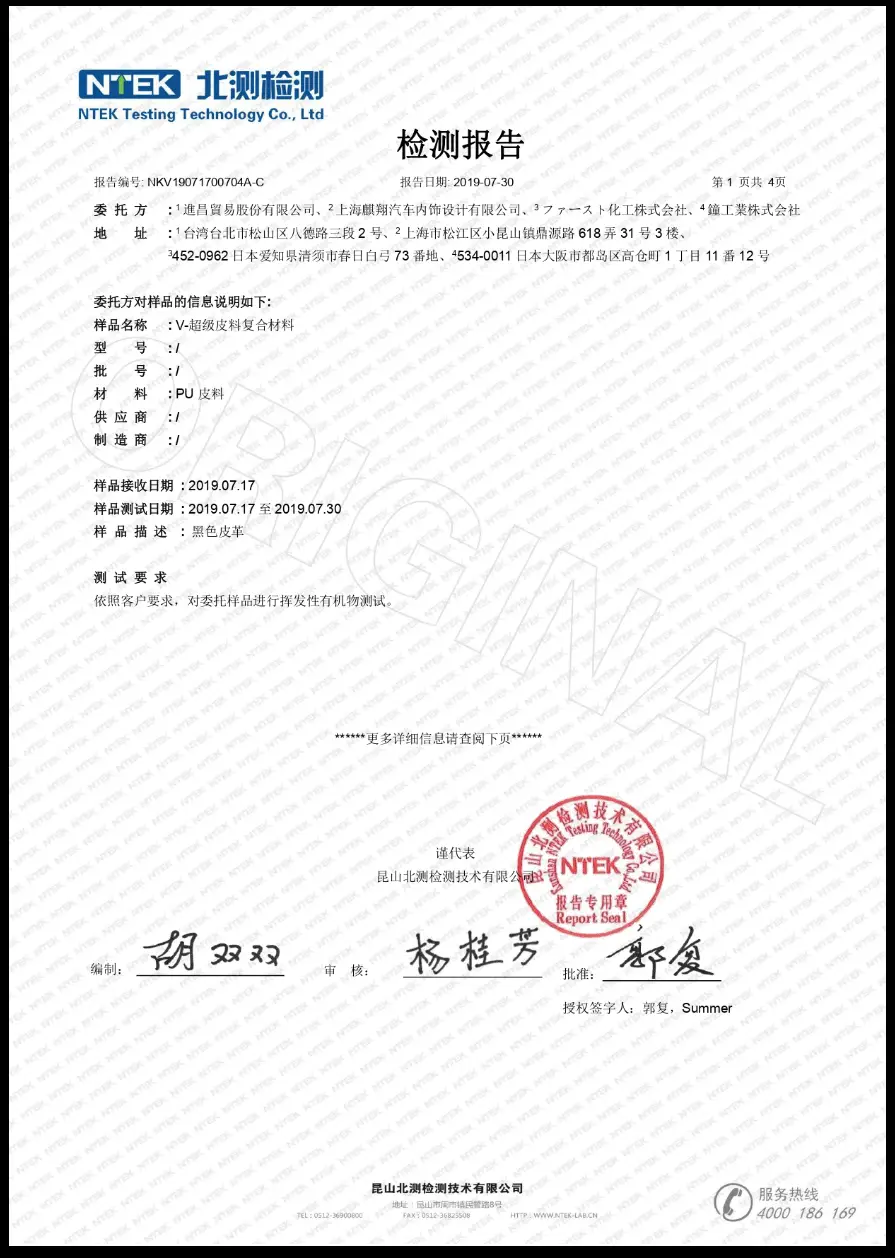

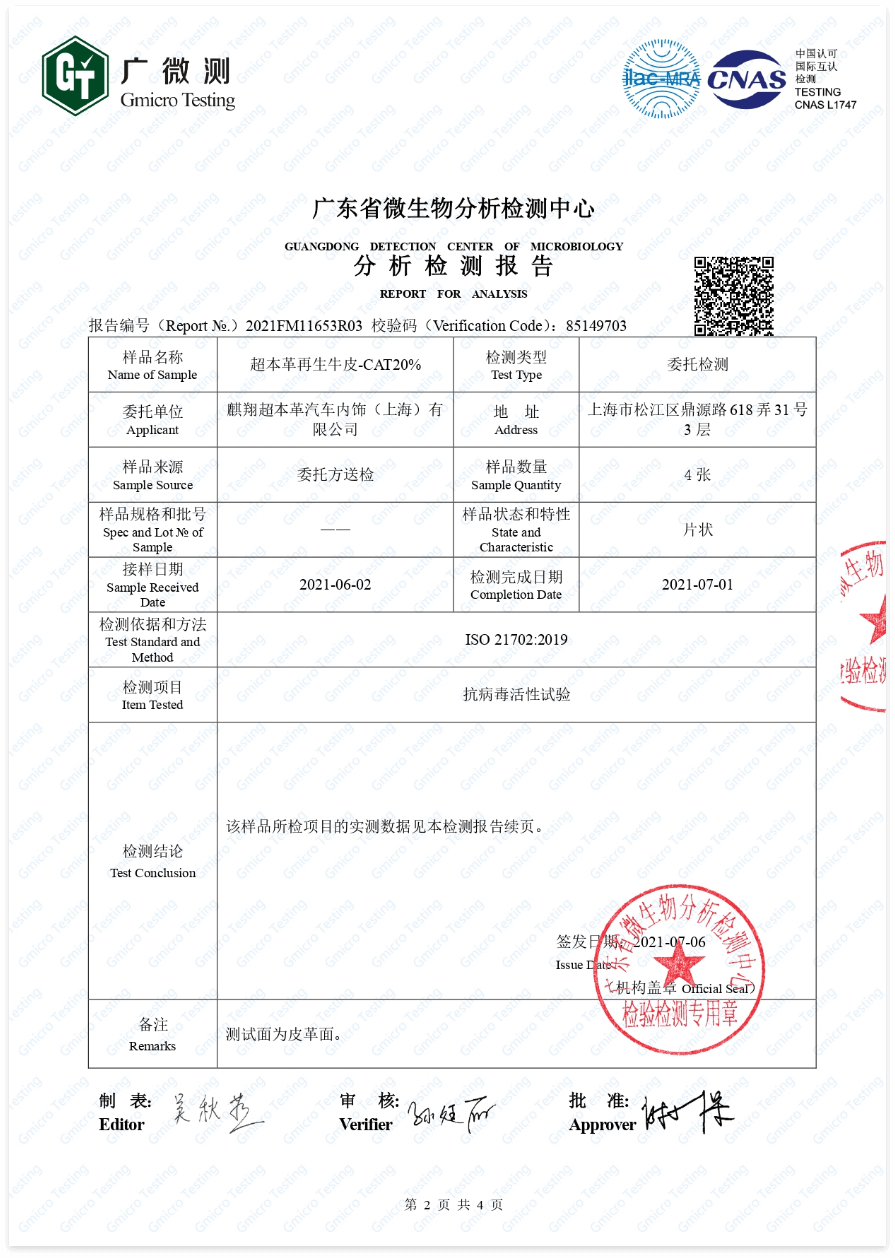

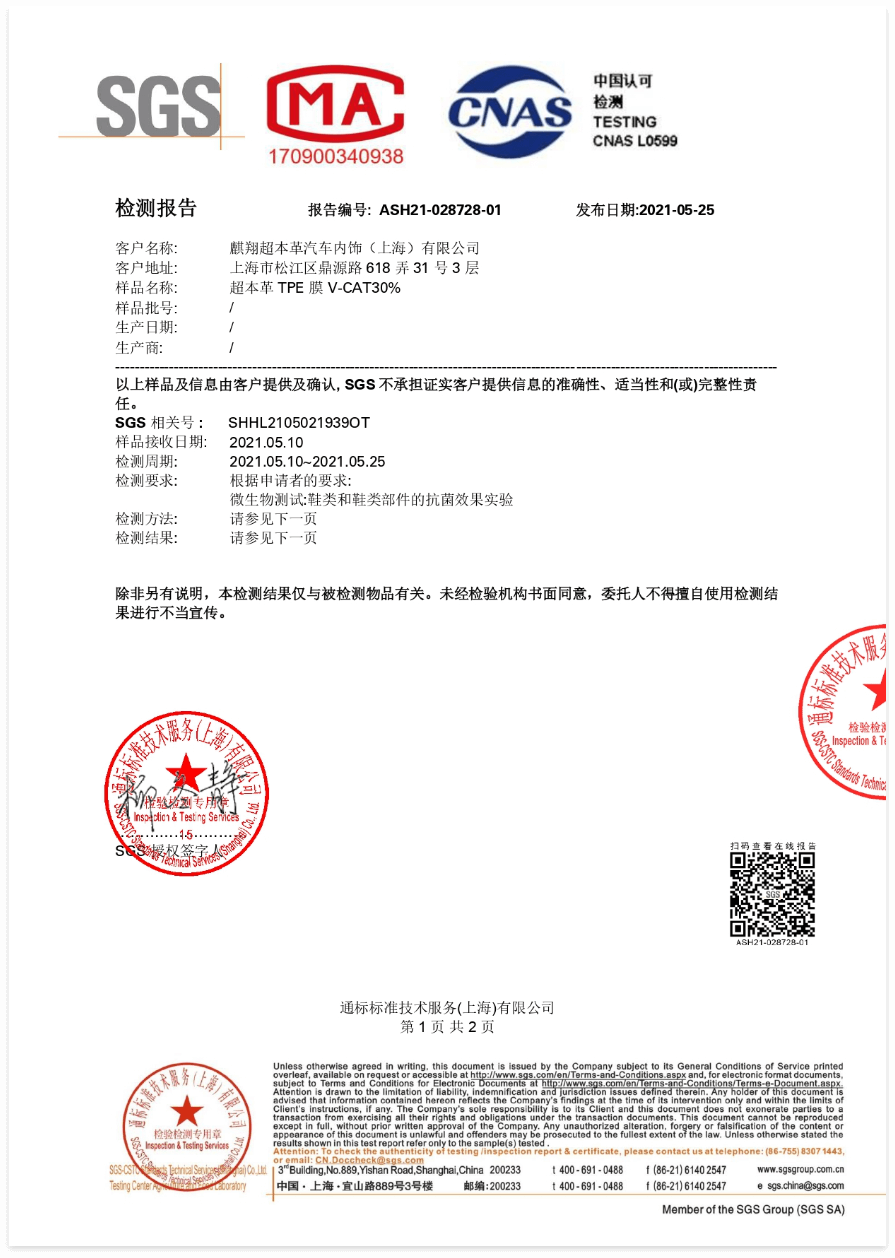

Total solution of Antiviral

Certification



Product application map
Type Material name Product description Processing Seat surface Seat
backside		 IP
DP		 CNSL ABC Pillar Steering
wheel		 Touch panel
Trim
Leather NOAH PREMIUM®娜雅⾰® Thermoplastic microfiber leather Surface
mount/sewing/Vacuum frequency/Vac 		● ● ● ● ● ● ●
SANTEX® 海洋⾰® Water-based PU+100%
t-PET or cowhide		 Surface mount/sewing ● ● ● ● ● ● ●
SENCRO® 雲朵⾰® Thermoplastic TPE leather Surface mount/sewing/
High frequency 		  ● ● ● ● ● ●
Film MYSTIQUE® 輕烯膜® TPO TPO+PP Foam IMG/TOM/OMD   ● ● ● ●   ●
SIRAYAE® 湯姆膜® Decorative film TOM/OMD     ● ● ●   ●
CRYSTPO® 星空膜® TPO transparent film TOM/OMD/INS   ● ● ● ●   ●
Meet the physical standard of STELLANTIS interior material
Item  Standard Test Method Result
Scratch resistant No delamination SAE J365 PASS
Abrasion No color changes or loss emboss SAE J948
CS10 , 500g , 500times		 PASS
Low temperature shock Visually non-destructive LP-463KB-28-01 PASS
Color fastness to rubbing Dry≧ 4
Wet≧ 4		 SAE J861 PASS
VOC Dry≤5 LP-463KC-9-01 PASS
Fogging Gloss method ≧ 70%
(the glass sheet has no condensation deposits)		 SAE J1756 PASS
Certification

IATF16949
Vehicle quality management
system certification
Certified Factory
SF Taiwan
SF China

ISO9001
Quality management
system certification Certified Factory
SF Taiwan
SF China
SF Vietnam

ISO14001
Environment management
system certification
Certified Factory
SF Taiwan
SF China

GRS
Global Recycled Standard
system certification
Certified Factory
SF Taiwan

Contact



Michael Chang
E-mail: Michael@sanfang.com.tw
TEL: +886-7-3712111 ext.31873
Mobile: +886-966702123




Benson Lin
E-mail: bensonlin@sanfang.com.tw
TEL: +886-4-24632028 ext.34616
Mobile: +886-937337928

NOAH PREMIUM® ｜娜雅⾰®




Genuine leather feel.
Thermoplastic microfiber.
Vacuum processing.
Good wrinkle resistance.

Application:
Seat Cover∣Steering Wheel∣Trim Panel∣IP∣DP




Compare NOAHPREMIUM® Genuine Leather
Vacuum Yes X
Cutting use rate High Low
Molding change More Few
Water waste 0 High
ECO Yes X

SANTEX®｜海洋⾰®




Water-Base PU.
ECO, Solvent-free, VOC-free.
Genuine leather feel.
100% rPET substrate.
Recycled Leather substrate

Application:
Seat Cover∣Steering Wheel∣Trim Panel∣IP∣DP∣CNSL∣
ABC Pillar






Compare Leather SANTEX® PVC
Cost High Mid Low
Hand feel Good Good General
Extensibility Low General General
Non-toxic X Yes X
ECO X Yes X

ENCRO®｜雲朵⾰®





Lightweight，40% reduce than PVC.
Non-toxic, low carbon, VOC-Free.
Thermoplastic, Suitable for quilting, High Frequency.
100% rPET substrate.

Application:
Seat Cover∣Steering Wheel∣Trim Panel∣IP∣DP∣CNSL




Compare ENCRO® PVC
Weight (0.9mm) 420 g/m² 800 g/m²
Cold resistance Good X
Light resistance Good General
ECO Good X
Cost Low Low

MYSTIQUE®｜輕烯膜®





Lightweight, 30% reduce than PVC.
ECO, Solvent-free, VOC-Free.
Thermoplastic, Rich modeling design.
IMG process.
Automation, Labor cost reduced.

Application : IP∣DP∣CNSL∣ABC Pillar





Compare MYSTIQUE® PVC
Wieght (0.5mm) 450 g/m² 650 g/m²
ECO Yes X
Futuristic Yes X

SIRAYA®｜湯姆膜®



Good leather touch.
Skin friendly.
Thermoplastic, rich shape design.
Vacuum, automation, labor costs are reduced.
Customized colors.
TOM, OMD processing.

Application:
Trim Panel∣IP∣DP∣CNSL∣ABC Pillar

CRYSTPO®｜星空膜®



Touch film.
High transmission.
Non-halo after light up.
OMD, TOM processing.

Application:
Trim Panel∣IP∣DP∣CNSL∣ABC Pillar
